Redline UTV Intake Area
Redline UTV Intake Area

Crankcase
Case
Front Cover
Crankdrive

Cylinder Head
Valve Cover
Rocker Arms
Cylinder Head
Valves
Valve Train

Cooling System
Water Manifold
Water Pump





Lubrication System
Dry Sump
Oil Filter, Oil Pump

Intake Area
Engine Management System Starter, Generator
Fuel Unit

Repair Kits
Attaching Parts

More Parts Below!

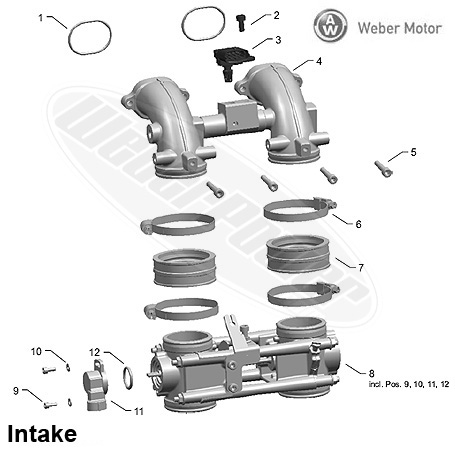

POS Order # Description QTY
Required
Price
Each

1 100345 O-Ring 2 $2.99
2 403390 Bolt M6x12 1 $2.45
3 102256 Pressure Sensor 6 $125.40
4 104431 Intake Fitting 1 $385.18
5 100520 Bolt M6x30 8.8 (6-Pack) 1 $5.16
6 100487 Hose Clamp 50-70/9 1 $2.96
7 401802 Pipe Coupling 1 $14.10
8 103867 Throttle Body 1 $716.54
9 103170 Bolt M4x10 6 $0.82
10 103152 Washer (6-Pack) 1 $2.29
11 103169 Throttle Position Sensor 1 $99.48
12 401167 O-Ring 1 $1.99

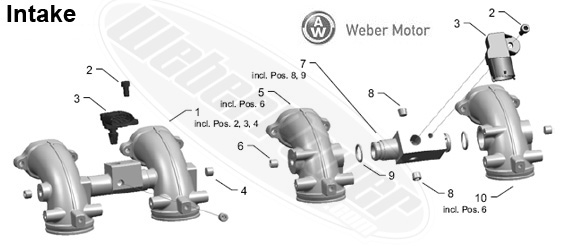

POS Order # Description QTY
Required
Price
Each

1 104431 Intake Fitting 1 $448.65
2 403390 Bolt M6x12 1 $2.45
3 102256 Pressure Sensor 1 $125.40
4 102992 Plug 1 $1.71
5 104432 Intake Fitting Left 1 $157.69
6 102992 Plug 1 $1.71
7 104435 Intake Fitting Connection 1 $235.20
8 401242 Plug 1 $5.98
9 100517 O-Ring 2 $1.33
10 104434 Intake Fitting Right 1 $157.69
