PLEASE NOTE: The Long Block Type can be differentiated according
to the water pump outlet. See Crankcase Case for more info. Along with a change
in Long Block Type, the Turbocharger Bracket must also be exchanged.
| POS |
Order # |
Description |
QTY
Required |
Price
Each |
|

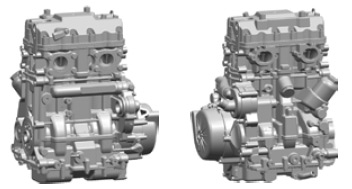

| Long Block |
| * |
103320 |
Long Block Type 2 |
1 |
$7003.90 |
|
| Sub system parts like
starter, flywheel and engine brackets are not supplied. |
| POS |
Order # |
Description |
QTY
Required |
Price
Each |
|
| Cylinder Head |
| |
103334 |
Cylinder Head Repair Kit |
1 |
$1476.29 |
|
| |
This Repair Kit Includes: |
| |
104249 |
Cylinder Head |
1 |
|
|
|
100514 |
Bolt M6x40 10.9 |
2 |
|
|
|
100094 |
Welch Plug |
4 |
|
|
|
100228 |
Sleeve |
8 |
|
|
|
101973 |
Rocker Arm Support 1 |
2 |
|
|
|
101974 |
Rocker Arm Support 2 |
2 |
|
|
|
100605 |
Bolt |
2 |
|
|
|
102327 |
Exhaust Valve |
4 |
|
|
|
102542 |
Intake Valve |
4 |
|
|
|
100262 |
Spring Pad |
8 |
|
|
|
100081 |
Valve Spring |
1 |
|
|
|
102316 |
Spring Cup |
8 |
|
|
|
100129 |
Collet Valve |
16 |
|
|
|
101921 |
Camshaft |
1 |
|
|
|
100078 |
Camshaft Axle |
1 |
|
|
|
102024 |
Rocker Arm Long |
2 |
|
|
|
102023 |
Rocker Arm Short |
2 |
|
|
|
100080 |
Rocker Axle |
4 |
|
|
|
102992 |
Plug |
1 |
|
|
|
102453 |
Stud M8x38 8.8 |
8 |
|
|
|
400920 |
Fitting (total lenght 33mm) M8x1x12 |
1 |
|
|
|
401990 |
Fitting (total lenght 38mm) M8x1x17 |
1 |
|
|
|
100587 |
Seal 8x12x1 Al |
2 |
|
|
|
