Avon Seasport Jet 320, 330, 430 / Jockey 320 / Riva 320 Turbocharging

Crankcase
Case
Front Cover
Crankdrive

Cylinder Head
Valve Cover
Rocker Arms
Cylinder Head
Valves
Valve Train

Cooling System
Expansion Tank
Water Manifold
Heat Exchanger
Water Pump
Turbocharger

Jet Propulsion
Attaching Parts
Propulsion
Steering
Special Tools, Repair Kits

Zodiac/Avon Driveshaft Damping Bearing

Turbocharging
Turbocharger
Intercooler
Exhaust Pipe
Mounting Intercooler

Lubrication System
Oil Cooler
Oil Cooler (Jockey)
Roll Over Tank
Roll Over Tank (Jockey)
Dry Sump
Turbocharger, Oil Filter, Oil Pump

Intake Area
Intake Manifold
Throttle Body
Throttle Body (Jockey)

Engine Management System
Starter, Generator
Fuel Unit

Engine Mount
Special Tools
Repair Kits
Attaching Parts

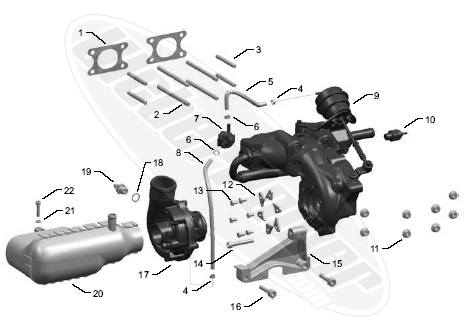

POS Order # Description QTY Price
1 101446 Exhaust Gasket 1 $5.02
2 100426 Stud - M8x118 1 $8.20
3 100425 Stud - M8x69 1 $2.69
4 101579 Hose Clamp - 7.8x9.5/5 6 $0.75
5 102492 Hose 1 $7.14
6 101540 Hose Clamp 8.8-10.5/5 6 $0.75
7 102383 Valve 1 $117.25
8 102493 Hose 1 $16.00
9 * Exhaust Manifold (See Repair Kits) 1
10 102646 Switch 70/65°C 1 $63.71
11 100737 Nut M8 6 $1.93
12 100575 Segment 1 $7.54
13 101771 Bolt M6x10 1 $2.69
14 100632 Bolt M8x50 8.8 6 $1.60
15 * Turbocharger Bracket (See Below)
16 * Bolt (See Below)
17 * Turbocharger (See Repair Kits)
18 100529 Seal 14x18x1.5AI 6 $0.86
19 100670 Fitting 1 $7.65
20 100203 Airbox 1 $40.85
21 100448 Washer 6 $0.75
22 100502 Bolt M6x25 8.8 6 $0.69


POS Order # Description QTY Price
Turbo Bracket Type 1 & Type 2
Note: The turbocharger bracket is dependent on the crankcase type. Along with a change in crankcase type, the Turbocharger Bracket must also be exchanged.See Crankcase Case for more info.
1 102006 Turbocharger Bracket Type 1 1 $89.36
2 100524 Bolt M8x40 8.8 6 $1.13
3 103964 Turbocharger Bracket Type 2 1 $118.69
4 102490 Bolt M8x25 6 $0.99
