Williams/Novurania 2008-2009 285-NA Lubrication System Roll Over Tank

Crankcase
Case
Front Cover
Crankdrive

Cylinder Head
Valve Cover
Rocker Arms
Cylinder Head
Valves
Valve Train

Cooling System
Expansion Tank
Water Manifold
Heat Exchanger
Water Pump
Exhaust Pipe
Exhaust System

Jet Propulsion
Propulsion Parts





Lubrication System
Oil Cooler
Roll Over Tank
Dry Sump
Oil Filter, Oil Pump
Mounting Oil Tank

Intake Area
Intake Manifold
Throttle Body

Engine Management System
Starter, Generator
Fuel Unit

Engine Mount
Special Tools
Repair Kits
Attaching Parts

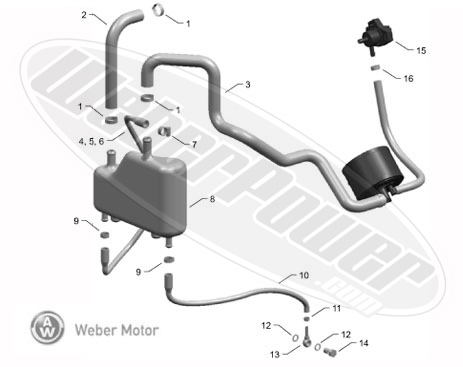

POS Order # Description QTY Price
1 100471 Hose Clamp 16-27/9 1 $3.36
2 102315 Hose 1 $7.61
3 * Hose (See Below)
4 102968 Hose 1 $34.91
5 101543 Hose Clamp 10 $0.69
6 102983 Hose Connector 1 $4.00
7 404466 Hose Clamp 10-16/9 1 $2.54
8 101650 Roll Over Tank 1 $44.70
9 100474 Hose Clamp 12-22/9 1 $3.51
10 101252 Hose 1 $40.07
11 101540 Hose Clamp 8.8-10.5/5 6 $0.75
12 100459 Seal 10x16x1 Al 6 $0.96
13 100148 Banjo Fitting 1 $3.50
14 100085 Banjo Bolt - M10x1 1 $3.00
15 103127 Idle Control Valve 1 $120.90
16 100474 Hose Clamp 12-22/9 1 $3.51

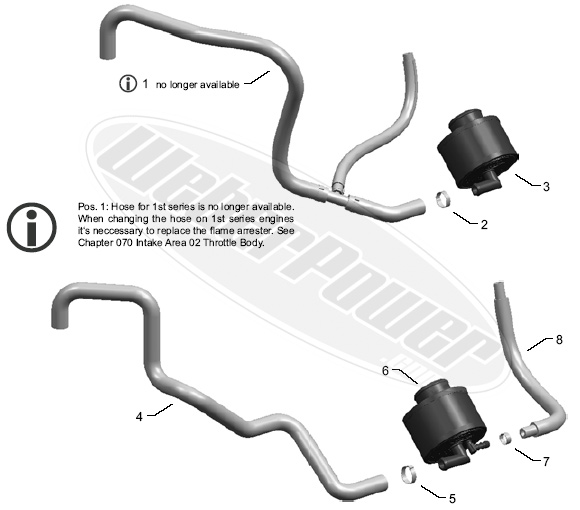

POS Order # Description QTY Price
  (402370) Hose
1 100471 Hose Clamp 16-27/9 1 $3.36
2 * Airbox 1st series
(See Intake Area Throttle Body)

3 402640 Hose 1 $66.65
4 102968 Hose 1 $34.91
1 100471 Hose Clamp 16-27/9 1 $3.36
6 * Airbox
(See Intake Area Throttle Body)

7 100474 Hose Clamp 12-22/9 1 $3.51
8 402400 Hose 1 $9.57
