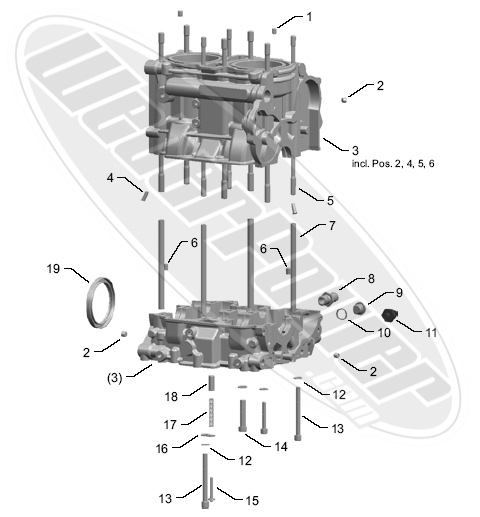

Williams/Novurania 2008-2009 285-NA Crankcase Case

Crankcase
Case
Front Cover
Crankdrive

Cylinder Head
Valve Cover
Rocker Arms
Cylinder Head
Valves
Valve Train

Cooling System
Expansion Tank
Water Manifold
Heat Exchanger
Water Pump
Exhaust Pipe
Exhaust System

Jet Propulsion
Propulsion Parts





Lubrication System
Oil Cooler
Roll Over Tank
Dry Sump
Oil Filter, Oil Pump
Mounting Oil Tank

Intake Area
Intake Manifold
Throttle Body

Engine Management System
Starter, Generator
Fuel Unit

Engine Mount
Special Tools
Repair Kits
Attaching Parts



POS Order # Description QTY Price
1 100280 Sleeve 6 $1.07
2 102992 Plug 1 $1.71
3 103976 Crankcase Type 2 1 $1863.32
4 100287 Welch Plug 1 $3.50
5 100070 Tie Rod 1 $19.18
6 100225 Centering Pin 2 $1.63
7 100224 Tie Rod Sleeve 1 $4.55
8 401291 Fitting Type 2 M18x1.5x18 1 $10.35
9 102523 Plug 1 $3.09
10 100454 Seal 18x22x1.5 Al 6 $1.29
11 100690 Oil Pressure Switch 1 $23.68
12 100468 Washer 6 $0.69
13 100467 Bolt M8x90 10.9 6 $1.60
14 100464 Bolt M8x50 10.9 6 $1.60
15 102442 Pin 1 $6.02
16 100297 Clamp Plate 1 $2.12
17 100328 Spring 1 $6.37
18 100072 Oil Pressure Piston 1 $9.11
19 101526 Oil Seal 1 $23.37
