*Note* The 100557 chain link has an inner pin diameter of 0.129” (3.28mm) and fits the original timing chain only. It will not fit the 410103 timing chain.

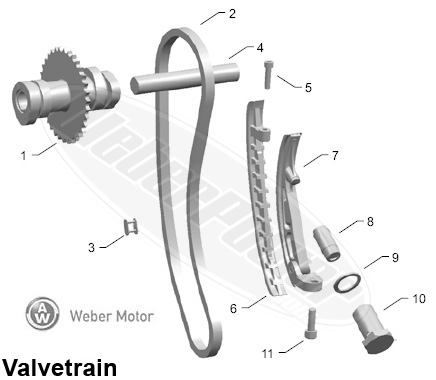

POS Order # Description QTY
Required
Price
Each

1 401254 Camshaft 1 $281.22
2 410103 Timing Chain & Link 1 $60.62
3 100557 Chain Link, Single (For Original Chain Only) 1 $10.99
4 100078 Camshaft Axle 1 $36.46
5 100502 Bolt M6x25 8.8 (6-Pack) 1 $5.16
6 100069 Chain Rail 1 $14.18
7 102456 Chain Guide 1 $41.03
8 100079 Chain Tensioner 1 $62.34
9 100436 Seal 24x32x2 Al 1 $1.82
10 100337 Plug 1 $23.05
11 100832 Bolt M8x25 10.9 6 $0.91
