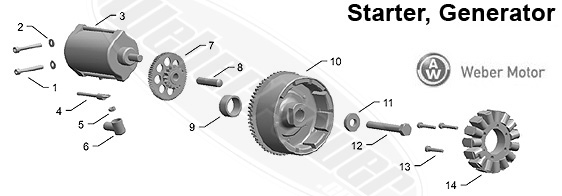

POS Order # Description QTY Price
1 100545 Bolt M6x50 8.8 6 $0.89
2 103333 Washer 10 $0.60
3 401069 Starter 1 $366.88
4 102263 Starter Lead 1 $24.54
5 100835 Nut M6 10 $0.45
6 100388 Rubber Gromet 1 $9.49
7 101261 Gear 6 $98.88
8 101117 Axle 1 $4.09
9 100565 Neadle Bearing 1 $7.76
10 400700 Rotor 1 $431.90
11 101289 Washer 6 $1.60
12 100182 Bolt M12x90 10.9 1 $2.05
13 100505 Bolt M6x35 8.8 6 $0.64
14 100384 Stator 1 $116.07
